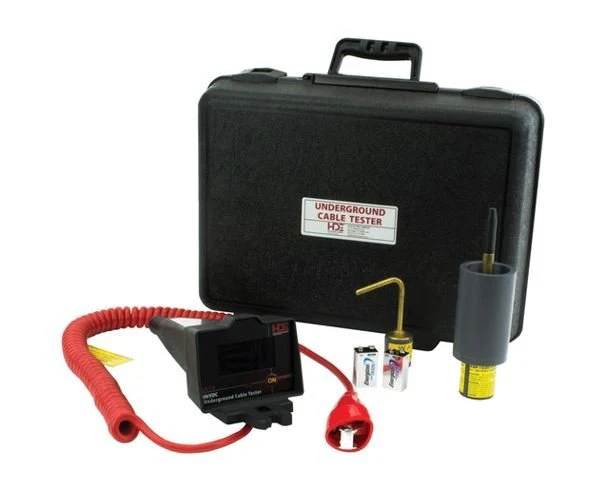

INCLUDES:

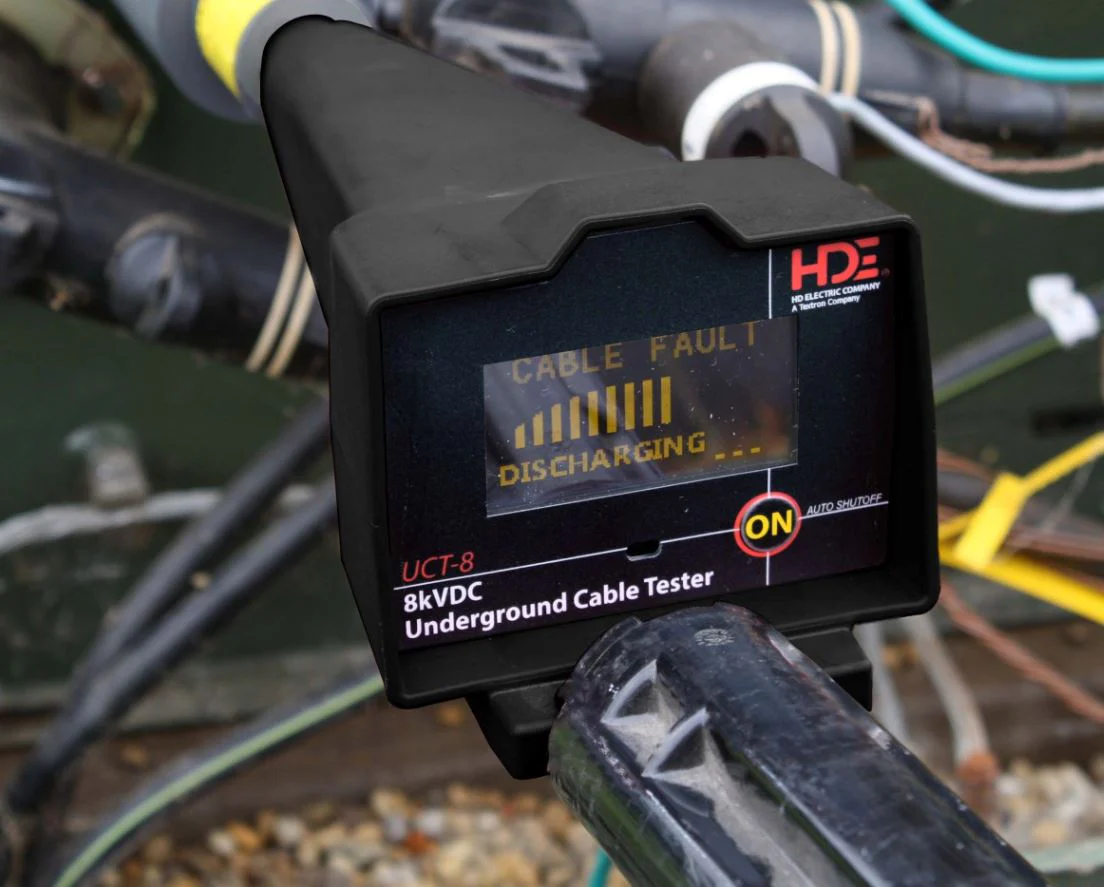

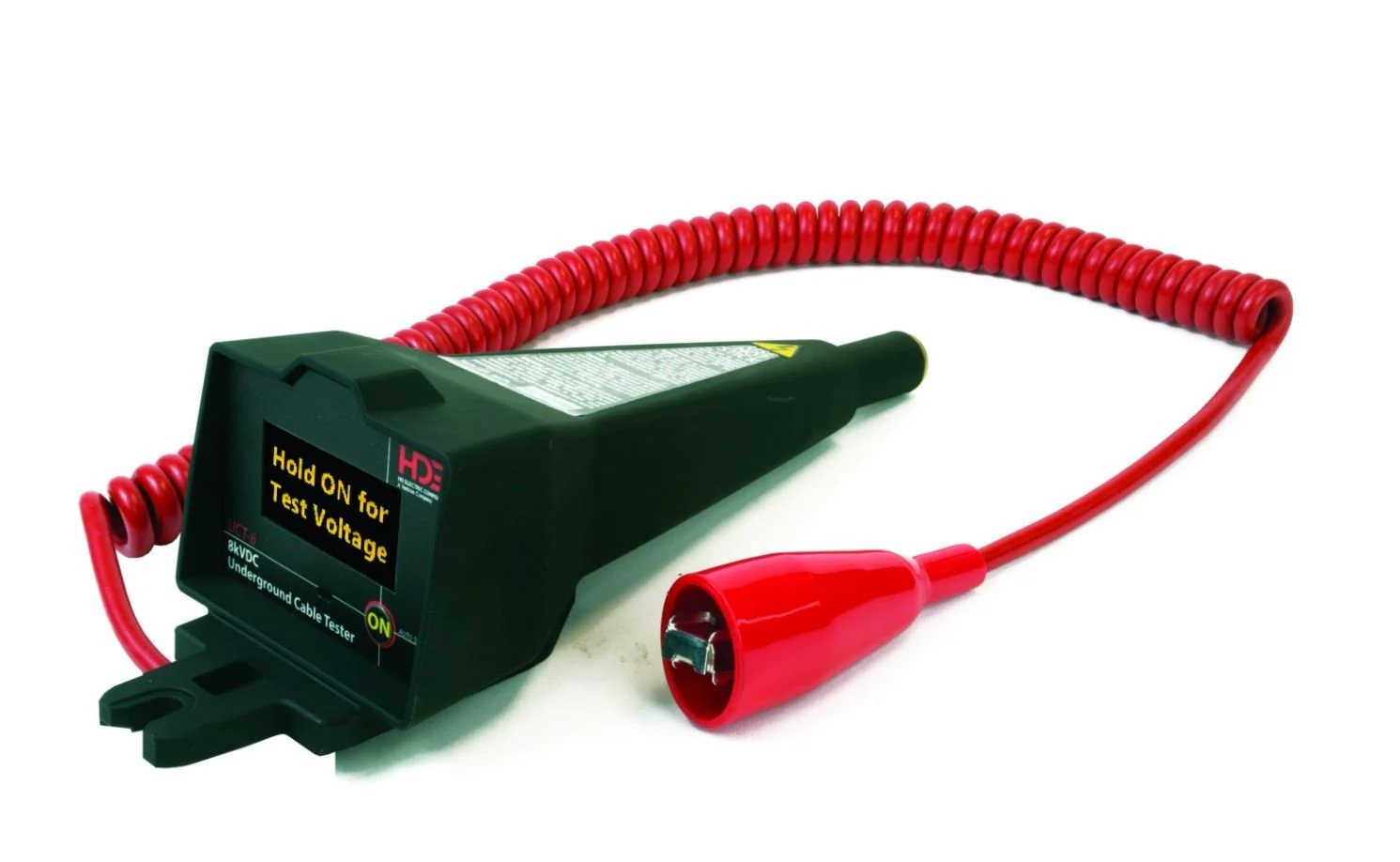

• (1) Underground Cable Fault Tester

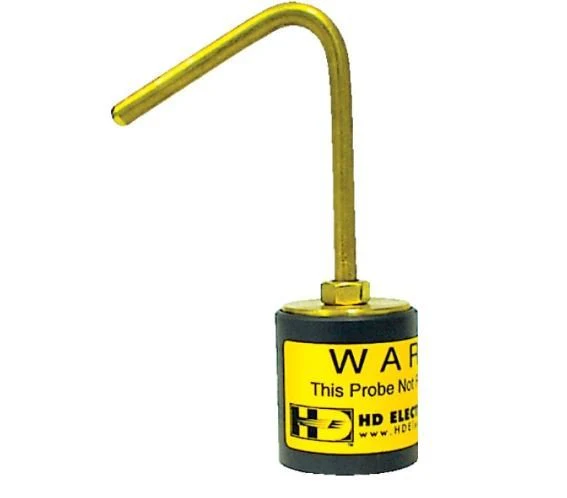

• (1) 025-OLPS-5 Overhead Hook Brass Probe
• (1) ASP-15/25 Underground Adapter Bushing Probe, 15kV & 25kV Class

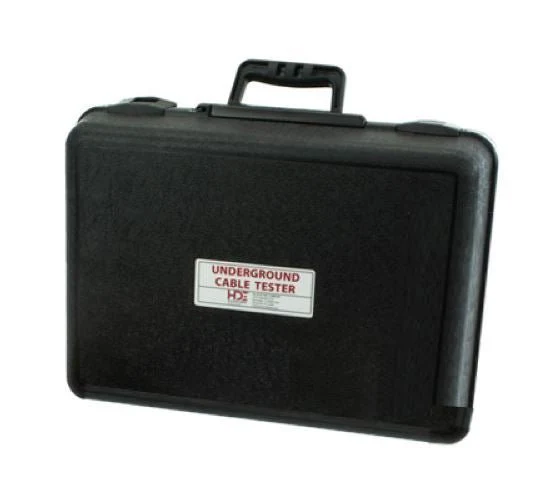

• (1) CS-UCT Case

FEATURES:
• Clear and simple test results shown on the large LED display, no interpretation needed
• Compact, single hot stick operation for testing cable
• Self-contained 8kV high voltage source powers the tester
• Easy to use – one button test function
• Lightweight
• Field replaceable 9V lithium battery with low battery indication

SPECIFICATIONS:
• TEST VOLTAGE OUTPUT: 8kVDC
• OPERATING VOLTAGE RANGE: 50V-25kVAC line to ground
• OPERATING FREQUENCY: 50/60Hz
• ACCURACY: AC voltage, 5% of reading
• MAXIMUM CABLE LENGTH TESTED: 1500 ft. (457m)
• BATTERY: 9V lithium
• BATTERY LIFE: Approximately 40 tests on 300' of 250 Kcmil (non-faulted) cable, fewer on faulted cable
• OPERATING TEMPERATURE RANGE: +20°F to +120°F (-7°C to +49°C)
• DIMENSIONS (WITHOUT PROBES): 14" L x 4.6" W x 4.1" H (36cm x 12cm x 10cm)
• CORD LENGTH: Retracted: 3.5', extended 12'

**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
