Slingco 6' Extension Arm W/2 Wire Holders & Insulators - ITP10474

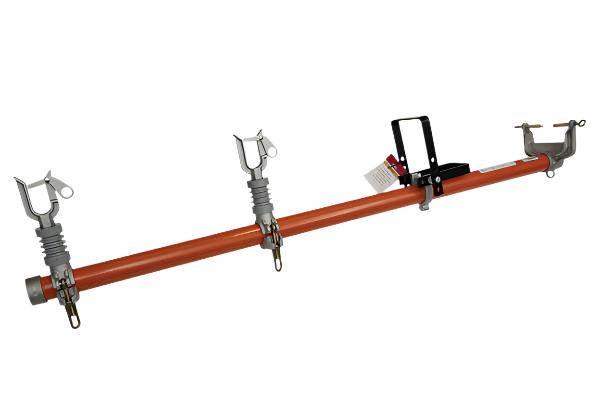

Slingco Fiberglass Extension Arm
VERSATILE MOUNTING OPTIONS FOR TEMPORARY MOVEMENT OF CABLES
The Slingco Fiberglass Extension Arm is used to move conductor to create working clearance in congested areas, or as a temporary aid in replacing insulators and/or conductor. The Fiberglass Extension Arm complies with ASTM F711, OSHA 1910.269 (j)(l), and OSHA 1926.957 (a)(l). The arm is rated for 34.5kV with insulators and 15kV without insulators.
It includes a double bracket system that will fit over crossarms up to 6” x 6”. The wire holders will accommodate cables up to 1.6” in diameter. The Slingco Fiberglass Extension Arm includes a QR code so the manual and instructions are always accessible in the field - just scan to view on your mobile.
Features and benefits
- ASTM F711 compliant
- Dual crossarm brackets to fit up to a 6” x 6” crossarm
- Fits up to 1.6” cable
- Rated for 34.5kV with insulators
- Easy to install
- Furnished with bronze eye bolts
**LEAD TIME FOR THIS ITEM IS 1-2 WEEKS**
SKU: ITP10474
Slingco Fiberglass Extension Arm
VERSATILE MOUNTING OPTIONS FOR TEMPORARY MOVEMENT OF CABLES
The Slingco Fiberglass Extension Arm is used to move conductor to create working clearance in congested areas, or as a temporary aid in replacing insulators and/or conductor. The Fiberglass Extension Arm complies with ASTM F711, OSHA 1910.269 (j)(l), and OSHA 1926.957 (a)(l). The arm is rated for 34.5kV with insulators and 15kV without insulators.
It includes a double bracket system that will fit over crossarms up to 6” x 6”. The wire holders will accommodate cables up to 1.6” in diameter. The Slingco Fiberglass Extension Arm includes a QR code so the manual and instructions are always accessible in the field - just scan to view on your mobile.
Features and benefits
- ASTM F711 compliant
- Dual crossarm brackets to fit up to a 6” x 6” crossarm
- Fits up to 1.6” cable
- Rated for 34.5kV with insulators
- Easy to install
- Furnished with bronze eye bolts
**LEAD TIME FOR THIS ITEM IS 1-2 WEEKS**
SKU: ITP10474
Original: $525.00
-65%$525.00
$183.75Description
Slingco Fiberglass Extension Arm
VERSATILE MOUNTING OPTIONS FOR TEMPORARY MOVEMENT OF CABLES
The Slingco Fiberglass Extension Arm is used to move conductor to create working clearance in congested areas, or as a temporary aid in replacing insulators and/or conductor. The Fiberglass Extension Arm complies with ASTM F711, OSHA 1910.269 (j)(l), and OSHA 1926.957 (a)(l). The arm is rated for 34.5kV with insulators and 15kV without insulators.
It includes a double bracket system that will fit over crossarms up to 6” x 6”. The wire holders will accommodate cables up to 1.6” in diameter. The Slingco Fiberglass Extension Arm includes a QR code so the manual and instructions are always accessible in the field - just scan to view on your mobile.
Features and benefits
- ASTM F711 compliant
- Dual crossarm brackets to fit up to a 6” x 6” crossarm
- Fits up to 1.6” cable
- Rated for 34.5kV with insulators
- Easy to install
- Furnished with bronze eye bolts
**LEAD TIME FOR THIS ITEM IS 1-2 WEEKS**
SKU: ITP10474
