Utility Solutions Personal Protective Grounds Trainer

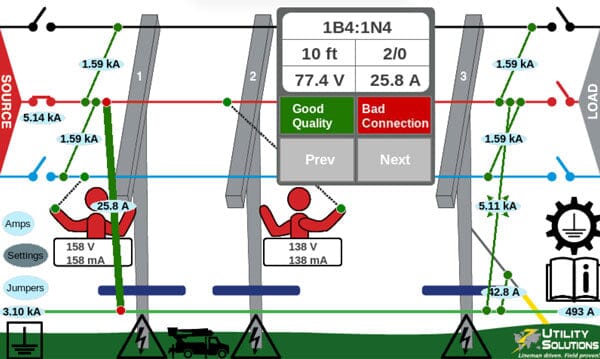

The Utility Solutions Overhead Grounds-Trainer™ provides an immersive learning experience for complex concepts. The simulator also allows for recreating field scenarios using interactive disconnect switches and source buttons.

Demonstrate complex concepts:

• Distribution of Fault Currents
• Ground Potential Rise
• Step & Touch Potential
• Soil Resistivity
• Resistance of Personal Protective Ground Sets (PPG)

Real world variables:

• System Voltages
• PPG & Connection Quality
• Soil Type & Temperature
• Broken Conductors
• Induction
• Backfeed

Configure multiple grounding styles and work methods:

• Shunt vs Umbrella Configurations
• Single Point Grounding
• Bracket Grounding
• Equipotential Zone Grounding (EPZ)
• Equipment Grounding
• Parallel Grounds
